Author

Affiliation

Rick Gilmore

Qualtrics

About

This page documents some work related to using Qualtrics.

Setup

The {qualtRics} package provides useful commands for interacting with the Qualtrics API.

The package should install as part of the set of package dependencies managed by {renv}. But you can install it directly via the R console: install.packages("qualtRics").

This site provides a helpful introduction to the package: https://cran.r-project.org/web/packages/qualtRics/vignettes/qualtRics.html

First, we load the package and store our survey credentials.

library(qualtRics)
library(ggplot2)

qualtrics_api_credentials(api_key = "<YOUR-QUALTRICS_API_KEY>",
                          base_url = "<YOUR-QUALTRICS_BASE_URL>",
                          install = TRUE)

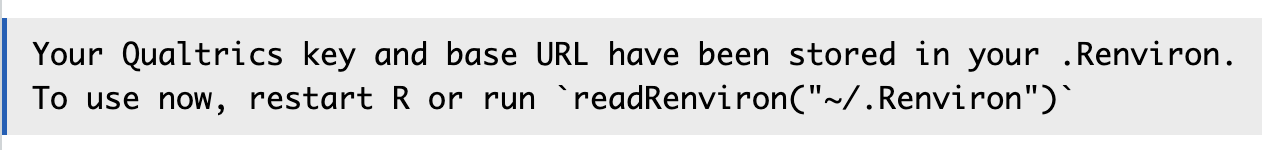

If the command runs properly, you should see the following message in your console:

Figure 1

WarningAvoid credential leaks

You don’t want your Qualtrics API key to get out into the wild. That’s why I don’t show mine in this example. So, do the following:

1. Run the above commands in an R, RStudio, or Positron R console.
2. Do not put save these credentials in a file that you check-in to version control like Git.
3. Do not share API keys. Have each person who needs access to your survey generate their own API key.

You’ll then need to restart R for the securly stored credentials to be available to {qualtRics}. You may also wish to run library(qualtRics) so that the package commands can be called by their short names.

Viewing surveys

To view the surveys available to you¹, run the following:

qualtRics::all_surveys() |>
  dplyr::arrange(desc(creationDate)) |>
  dplyr::select(-id)

# A tibble: 8 × 5
  name                                ownerId lastModified creationDate isActive
  <chr>                               <chr>   <chr>        <chr>        <lgl>
1 bootcamp-2026                       UR_8rd… 2026-05-01T… 2026-05-01T… TRUE
2 Sex difference survey REV 2019-11-… UR_8rd… 2021-08-26T… 2019-11-18T… TRUE
3 Sex difference survey REV 2019-11-… UR_8rd… 2022-04-19T… 2019-11-11T… TRUE
4 Sex differences survey REV 2019-11… UR_8rd… 2019-11-04T… 2019-11-04T… TRUE
5 Sex differences survey OLD          UR_8rd… 2019-11-04T… 2019-10-29T… TRUE
6 Sex difference survey               UR_8rd… 2019-10-29T… 2019-10-24T… TRUE
7 Individual differences in visual p… UR_8rd… 2019-10-24T… 2019-10-24T… FALSE
8 peep-II-test                        UR_8rd… 2015-09-17T… 2015-09-17T… FALSE

You’ll see that the bootcamp-2026 survey is the first one in the list.

Important

My Qualtrics API key gives permission to see all of the surveys I have access to.

This is why you don’t want to share your personal API key.

Since this page will be open to the public, I also dropped the id column from the list above.

The Qualtrics API is probably robust to efforts from outsiders to leverage access using the id column from a specific survey, but I didn’t want to take that chance.

Note also that if the data were being downloaded to a file, and the data contained any sensitive information, I’d add the data file directory to my .gitignore file so that it didn’t get synched to GitHub.

To retrieve this survey, we run the following:

bootcamp_survey <- qualtRics::all_surveys() |>
  dplyr::filter(name == "bootcamp-2026")

The bootcamp_survey variable is a rectangular data structure called a tibble. Here are the variable names in it:

names(bootcamp_survey)

[1] "id"           "name"         "ownerId"      "lastModified" "creationDate"
[6] "isActive"

Here are the questions:

questions <- qualtRics::survey_questions(surveyID = bootcamp_survey$id)

questions

# A tibble: 2 × 4
  qid   qname question                                                force_resp
  <chr> <chr> <chr>                                                   <lgl>
1 QID1  Q1    How tall are you in spans (1 span = distance from tip … FALSE
2 QID2  Q2    How enthusiastic are you about the following?           FALSE

Let’s retrieve a copy of the results.

answers <- qualtRics::fetch_survey(surveyID = bootcamp_survey$id,
                                   tmp_dir = "data/raw_data")

  |
  |                                                                      |   0%
  |
  |======================================================================| 100%

# change file name for clarity
file.copy(from = "data/raw_data/bootcamp-2026.csv", to = "data/raw_data/bootcamp-2026-silly-demo.csv")

[1] FALSE

To view the structure of the answers variable we use the str() function.

str(answers)

tibble [1 × 23] (S3: tbl_df/tbl/data.frame)
 $ StartDate            : POSIXct[1:1], format: "2026-05-01 08:31:17"
 $ EndDate              : POSIXct[1:1], format: "2026-05-01 08:31:49"
 $ Status               : chr "IP Address"
  ..- attr(*, "label")= Named chr "Response Type"
  .. ..- attr(*, "names")= chr "Status"
 $ IPAddress            : chr "165.85.38.17"
  ..- attr(*, "label")= Named chr "IP Address"
  .. ..- attr(*, "names")= chr "IPAddress"
 $ Progress             : num 100
  ..- attr(*, "label")= Named chr "Progress"
  .. ..- attr(*, "names")= chr "Progress"
 $ Duration (in seconds): num 31
  ..- attr(*, "label")= Named chr "Duration (in seconds)"
  .. ..- attr(*, "names")= chr "Duration (in seconds)"
 $ Finished             : logi TRUE
  ..- attr(*, "label")= Named chr "Finished"
  .. ..- attr(*, "names")= chr "Finished"
 $ RecordedDate         : POSIXct[1:1], format: "2026-05-01 08:31:49"
 $ ResponseId           : chr "R_5WrEY7SSM6Ruo2l"
  ..- attr(*, "label")= Named chr "Response ID"
  .. ..- attr(*, "names")= chr "ResponseId"
 $ RecipientLastName    : logi NA
  ..- attr(*, "label")= Named chr "Recipient Last Name"
  .. ..- attr(*, "names")= chr "RecipientLastName"
 $ RecipientFirstName   : logi NA
  ..- attr(*, "label")= Named chr "Recipient First Name"
  .. ..- attr(*, "names")= chr "RecipientFirstName"
 $ RecipientEmail       : logi NA
  ..- attr(*, "label")= Named chr "Recipient Email"
  .. ..- attr(*, "names")= chr "RecipientEmail"
 $ ExternalReference    : logi NA
  ..- attr(*, "label")= Named chr "External Data Reference"
  .. ..- attr(*, "names")= chr "ExternalReference"
 $ LocationLatitude     : num 39
  ..- attr(*, "label")= Named chr "Location Latitude"
  .. ..- attr(*, "names")= chr "LocationLatitude"
 $ LocationLongitude    : num -77.5
  ..- attr(*, "label")= Named chr "Location Longitude"
  .. ..- attr(*, "names")= chr "LocationLongitude"
 $ DistributionChannel  : chr "anonymous"
  ..- attr(*, "label")= Named chr "Distribution Channel"
  .. ..- attr(*, "names")= chr "DistributionChannel"
 $ UserLanguage         : chr "EN"
  ..- attr(*, "label")= Named chr "User Language"
  .. ..- attr(*, "names")= chr "UserLanguage"
 $ Q1                   : Ord.factor w/ 1 level "Click to write Choice 1": 1
  ..- attr(*, "label")= Named chr "How tall are you in spans (1 span = distance from tip of little finger to tip of thumb)? - Selected Choice"
  .. ..- attr(*, "names")= chr "Q1"
 $ Q1_1_TEXT            : num 35
  ..- attr(*, "label")= Named chr "How tall are you in spans (1 span = distance from tip of little finger to tip of thumb)? - Click to write Choice 1 - Text"
  .. ..- attr(*, "names")= chr "Q1_1_TEXT"
 $ Q2_1                 : num 40
  ..- attr(*, "label")= Named chr "How enthusiastic are you about the following? - Curling (sport)"
  .. ..- attr(*, "names")= chr "Q2_1"
 $ Q2_2                 : num 100
  ..- attr(*, "label")= Named chr "How enthusiastic are you about the following? - Banjo music"
  .. ..- attr(*, "names")= chr "Q2_2"
 $ Q2_3                 : num 100
  ..- attr(*, "label")= Named chr "How enthusiastic are you about the following? - Stargazing"
  .. ..- attr(*, "names")= chr "Q2_3"
 $ Q2_4                 : num 34
  ..- attr(*, "label")= Named chr "How enthusiastic are you about the following? - Hex stickers"
  .. ..- attr(*, "names")= chr "Q2_4"
 - attr(*, "column_map")= tibble [23 × 7] (S3: tbl_df/tbl/data.frame)
  ..$ qname      : chr [1:23] "StartDate" "EndDate" "Status" "IPAddress" ...
  ..$ description: chr [1:23] "Start Date" "End Date" "Response Type" "IP Address" ...
  ..$ main       : chr [1:23] "Start Date" "End Date" "Response Type" "IP Address" ...
  ..$ sub        : chr [1:23] "" "" "" "" ...
  ..$ ImportId   : chr [1:23] "startDate" "endDate" "status" "ipAddress" ...
  ..$ timeZone   : chr [1:23] "America/New_York" "America/New_York" NA NA ...
  ..$ choiceId   : logi [1:23] NA NA NA NA NA NA ...

There’s a lot of metadata to unpack and understand. But for our purposes here, we want a more human readable, and ‘tidier’ format.

qualtRics::extract_colmap(answers) |>
  kableExtra::kbl()

qname	description	main	sub	ImportId	timeZone	choiceId
StartDate	Start Date	Start Date		startDate	America/New_York	NA
EndDate	End Date	End Date		endDate	America/New_York	NA
Status	Response Type	Response Type		status	NA	NA
IPAddress	IP Address	IP Address		ipAddress	NA	NA
Progress	Progress	Progress		progress	NA	NA
Duration (in seconds)	Duration (in seconds)	Duration (in seconds)		duration	NA	NA
Finished	Finished	Finished		finished	NA	NA
RecordedDate	Recorded Date	Recorded Date		recordedDate	America/New_York	NA
ResponseId	Response ID	Response ID		_recordId	NA	NA
RecipientLastName	Recipient Last Name	Recipient Last Name		recipientLastName	NA	NA
RecipientFirstName	Recipient First Name	Recipient First Name		recipientFirstName	NA	NA
RecipientEmail	Recipient Email	Recipient Email		recipientEmail	NA	NA
ExternalReference	External Data Reference	External Data Reference		externalDataReference	NA	NA
LocationLatitude	Location Latitude	Location Latitude		locationLatitude	NA	NA
LocationLongitude	Location Longitude	Location Longitude		locationLongitude	NA	NA
DistributionChannel	Distribution Channel	Distribution Channel		distributionChannel	NA	NA
UserLanguage	User Language	User Language		userLanguage	NA	NA
Q1	How tall are you in spans (1 span = distance from tip of little finger to tip of thumb)? - Selected Choice	How tall are you in spans (1 span = distance from tip of little finger to tip of thumb)?	Selected Choice	QID1	NA	NA
Q1_1_TEXT	How tall are you in spans (1 span = distance from tip of little finger to tip of thumb)? - Click to write Choice 1 - Text	How tall are you in spans (1 span = distance from tip of little finger to tip of thumb)?	Click to write Choice 1 - Text	QID1_1_TEXT	NA	NA
Q2_1	How enthusiastic are you about the following? - Curling (sport)	How enthusiastic are you about the following?	Curling (sport)	QID2_1	NA	NA
Q2_2	How enthusiastic are you about the following? - Banjo music	How enthusiastic are you about the following?	Banjo music	QID2_2	NA	NA
Q2_3	How enthusiastic are you about the following? - Stargazing	How enthusiastic are you about the following?	Stargazing	QID2_3	NA	NA
Q2_4	How enthusiastic are you about the following? - Hex stickers	How enthusiastic are you about the following?	Hex stickers	QID2_4	NA	NA

Let’s make a simpler dataset with just the answers to our questions.

ImportantElegant vs. quick and dirty

There are always tradeoffs. Always. Here, rather than grab the questions from the still-unfamiliar-to-me {qualtRics} package using code, I grabbed and renamed the files by hand.

If you think that you will need to run your code more than once, it’s often worth taking time to do something the more elegant and robust way. That usually means writing a function and accessing data that’s already in a structured form. The output from the qualtRics::fetch_survey() function is well-structed. I just ran out of time to learn enough about it for the purposes of this demo.

If you use Qualtrics surveys frequently and want to use R for scripted data processing, then you should definitely dig in and figure out the better way.

select_ans <- answers |>
  dplyr::select(c("EndDate", "Q1_1_TEXT", "Q2_1", "Q2_2", "Q2_3", "Q2_4")) |>
  dplyr::rename("completed" = "EndDate",
                "height_spans" = "Q1_1_TEXT",
                "enthusiasm_curling" = "Q2_1",
                "enthusiasm_banjo" = "Q2_2",
                "enthusiasm_stargazing" = "Q2_3",
                "enthusiasm_hex_stickers" = "Q2_4")

Saving cleaned copy

public_path <- "data_public"
fn <- "bootcamp-2026-silly-demo.csv"
public_fn <- file.path(public_path, fn)
readr::write_csv(select_ans, public_fn)

Visualizing

Here are some extremely simple visualizations of these data.

Note

I typically use the package::function() syntax. This helps me remember which functions are from which packages, and eliminates conflicts between functions in different packages that have the same name.

On the other hand, I usually “source” or bring into memory using the library() command the {ggplot2} package. The typical ggplot figure involves so many function calls and involves the atypical-for-R + syntax that I find this easier to write and to read.

As my children will tell you we really said to them at one point, “Make good choices.”

library(ggplot2)

Height

select_ans |>
  ggplot() +
  geom_histogram(aes(x = height_spans)) +
  xlab("")

`stat_bin()` using `bins = 30`. Pick better value `binwidth`.

Figure 2: Distribution of self-reported heights in spans.

Enthusiasm: Curling

select_ans |>
  ggplot() +
  geom_histogram(aes(x = enthusiasm_curling)) +
  xlab("")

`stat_bin()` using `bins = 30`. Pick better value `binwidth`.

Figure 3: Distribution of self-reported enthusiasm for the sport of curling.

Enthusiasm: Banjo music

select_ans |>
  ggplot() +
  geom_histogram(aes(x = enthusiasm_banjo)) +
  xlab("")

`stat_bin()` using `bins = 30`. Pick better value `binwidth`.

Figure 4: Distribution of self-reported enthusiasm for banjo music.

Enthusiasm: Stargazing

select_ans |>
  ggplot() +
  geom_histogram(aes(x = enthusiasm_stargazing)) +
  xlab("")

`stat_bin()` using `bins = 30`. Pick better value `binwidth`.

Figure 5: Distribution of self-reported enthusiasm for stargazing.

Enthusiasm: Hex stickers

select_ans |>
  ggplot() +
  geom_histogram(aes(x = enthusiasm_hex_stickers)) +
  xlab("")

`stat_bin()` using `bins = 30`. Pick better value `binwidth`.

Figure 6: Distribution of self-reported enthusiasm for hex stickers.

Footnotes

1. In descending order by the date the survey was created.
